| enum | tN2kDD002 {
N2kDD002_No =0
, N2kDD002_Yes =1
, N2kDD002_Error =2
, N2kDD002_Unavailable =3
,
N2kDD002_Off =N2kDD002_No
, N2kDD002_Disabled =N2kDD002_No
, N2kDD002_Reset =N2kDD002_No
, N2kDD002_0 =N2kDD002_No
,
N2kDD002_On =N2kDD002_Yes
, N2kDD002_Enabled =N2kDD002_Yes
, N2kDD002_Set =N2kDD002_Yes
, N2kDD002_1 =N2kDD002_Yes
,
N2kDD002_Unknown =N2kDD002_Unavailable
} |
| | DD002 - Generic Status Pair. More...
|
| |
| enum | tN2kDD025 {
N2kDD025_Autonomous =0
, N2kDD025_Differential =1
, N2kDD025_Estimated =2
, N2kDD025_Simulator =3
,
N2kDD025_Manual =4
, N2kDD025_Error =0xe
, N2kDD025_Unavailable =0xf
} |
| | DD025 - Mode, Data. More...
|
| |
| enum | tN2kDD072 { N2kDD072_RangeResidualsWereUsedToCalculateData =0
, N2kDD072_RangeResidualsWereCalculatedAfterPosition =1
, N2kDD072_Error =2
, N2kDD072_Unavailable =3
} |
| | DD072 - Range Residual Mode. More...
|
| |
| enum | tN2kDD124 {
N2kDD124_NotTracked =0
, N2kDD124_TrackedButNotUsedInSolution =1
, N2kDD124_UsedInSolutionWithoutDifferentialCorrections =2
, N2kDD124_DifferentialCorrectionsAvailable =3
,
N2kDD124_TrackedWithDifferentialCorrections =4
, N2kDD124_UsedWithDifferentialCorrections =5
, N2kDD124_Error =14
, N2kDD124_Unavailable =15
} |
| | DD124 - PRN Usage Status. More...
|
| |
| enum | tN2kDD305 {
N2kAISAtoN_not_specified =0
, N2kAISAtoN_reference_point =1
, N2kAISAtoN_RACON =2
, N2kAISAtoN_fixed_structure =3
,
N2kAISAtoN_emergency_wreck_marking_buoy =4
, N2kAISAtoN_light_without_sectors =5
, N2kAISAtoN_light_with_sectors =6
, N2kAISAtoN_leading_light_front =7
,
N2kAISAtoN_leading_light_rear =8
, N2kAISAtoN_beacon_cardinal_N =9
, N2kAISAtoN_beacon_cardinal_E =10
, N2kAISAtoN_beacon_cardinal_S =11
,
N2kAISAtoN_beacon_cardinal_W =12
, N2kAISAtoN_beacon_port_hand =13
, N2kAISAtoN_beacon_starboard_hand =14
, N2kAISAtoN_beacon_preferred_ch_port_hand =15
,
N2kAISAtoN_beacon_preferred_ch_starboard_hand =16
, N2kAISAtoN_beacon_isolated_danger =17
, N2kAISAtoN_beacon_safe_water =18
, N2kAISAtoN_beacon_special_mark =19
,
N2kAISAtoN_cardinal_mark_N =20
, N2kAISAtoN_cardinal_mark_E =21
, N2kAISAtoN_cardinal_mark_S =22
, N2kAISAtoN_cardinal_mark_W =23
,
N2kAISAtoN_port_hand_mark =24
, N2kAISAtoN_starboard_hand_mark =25
, N2kAISAtoN_preferred_channel_port_hand =26
, N2kAISAtoN_preferred_channel_starboard_hand =27
,
N2kAISAtoN_isolated_danger =28
, N2kAISAtoN_safe_water =29
, N2kAISAtoN_special_mark =30
, N2kAISAtoN_light_vessel_lanby_rigs =31
} |
| | Enumeration of Aid to Navigation (AtoN) Type according to PGN129041. More...
|
| |
| enum | tN2kDD374 {
N2kDD374_UserDefined =0
, N2kDD374_MinimumDefined =1
, N2kDD374_FactoryDefault =2
, N2kDD374_MaximumSupported =3
,
N2kDD374_OutOfRange =14
, N2kDD374_DataNotAvailable =15
} |
| | Measurement delay source. More...
|
| |
| enum | tN2kDD473 { N2kDD473_OFF =0
, N2kDD473_ThrusterReady =1
, N2kDD473_ThrusterToPORT =2
, N2kDD473_ThrusterToSTARBOARD =3
} |
| | DD473 - Thruster Direction Control according to PGN 128006. More...
|
| |
| enum | tN2kDD474 { N2kDD474_OFF =0
, N2kDD474_Extend =1
, N2kDD474_Retract =2
, N2kDD474_Reserved =3
} |
| | DD474 - Thruster Retraction according to PGN 128006. More...
|
| |
| enum | tN2kDD480 { N2kDD480_WindlassStopped =0
, N2kDD480_DeploymentOccurring =1
, N2kDD480_RetrievalOccurring =2
, N2kDD480_Unavailable =3
} |
| | DD480 - Windlass Motion States according to PGN 128777. More...
|
| |
| enum | tN2kDD481 { N2kDD481_ChainPresentlyDetected =0
, N2kDD481_RopePresentlyDetected =1
, N2kDD481_Error =2
, N2kDD481_Unavailable =3
} |
| | DD481 - Rode Type States according to PGN 128777. More...
|
| |
| enum | tN2kDD482 { N2kDD482_NotDocked =0
, N2kDD482_FullyDocked =1
, N2kDD482_Error =2
, N2kDD482_DataNotAvailable =3
} |
| | DD482 - Anchor Docking States according to PGN 128777. More...
|
| |
| enum | tN2kDD484 { N2kDD484_Off =0
, N2kDD484_Down =1
, N2kDD484_Up =2
, N2kDD484_Reserved =3
} |
| | DD484 - Windlass Direction Control according to PGN 128776. More...
|
| |
| enum | tN2kDD487 {
N2kDD487_12VDC =0
, N2kDD487_24VDC =1
, N2kDD487_48VDC =2
, N2kDD487_24VAC =3
,
N2kDD487_Hydraulic =4
} |
| | DD487 - Motor Power Type according to PGN 128007. More...
|
| |
| enum | tN2kDD488 { N2kDD488_SingleSpeed =0
, N2kDD488_DualSpeed =1
, N2kDD488_ProportionalSpeed =2
, N2kDD488_DataNotAvailable =3
} |
| | DD488 - Speed Control Type according to PGN 128776. More...
|
| |
NMEA2000 standard type definitions.
This file contains (and must only contain) type definitions of data types defined in the NMEA2000 standard. These all have names of the form "DDnnn". The language of the definitions should follow exactly that of the standard document from which the information is drawn. No abbreviated names. No mangled capitalisation.
The entries here are mostly enums describing bit field types. Where an enum member has multiple meanings, each meaning is aliased (see tN2kDD0002 for an example).

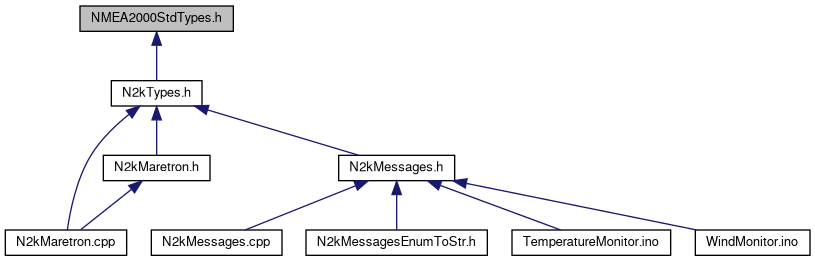

This file is included by N2kTypes.h where the standard code names are aliased into corresponding long names (once again, exactly as described by NMEA).
Resources NMEA 2000 ® Appendix B.2 – Data Dictionary
Definition in file NMEA2000StdTypes.h.
